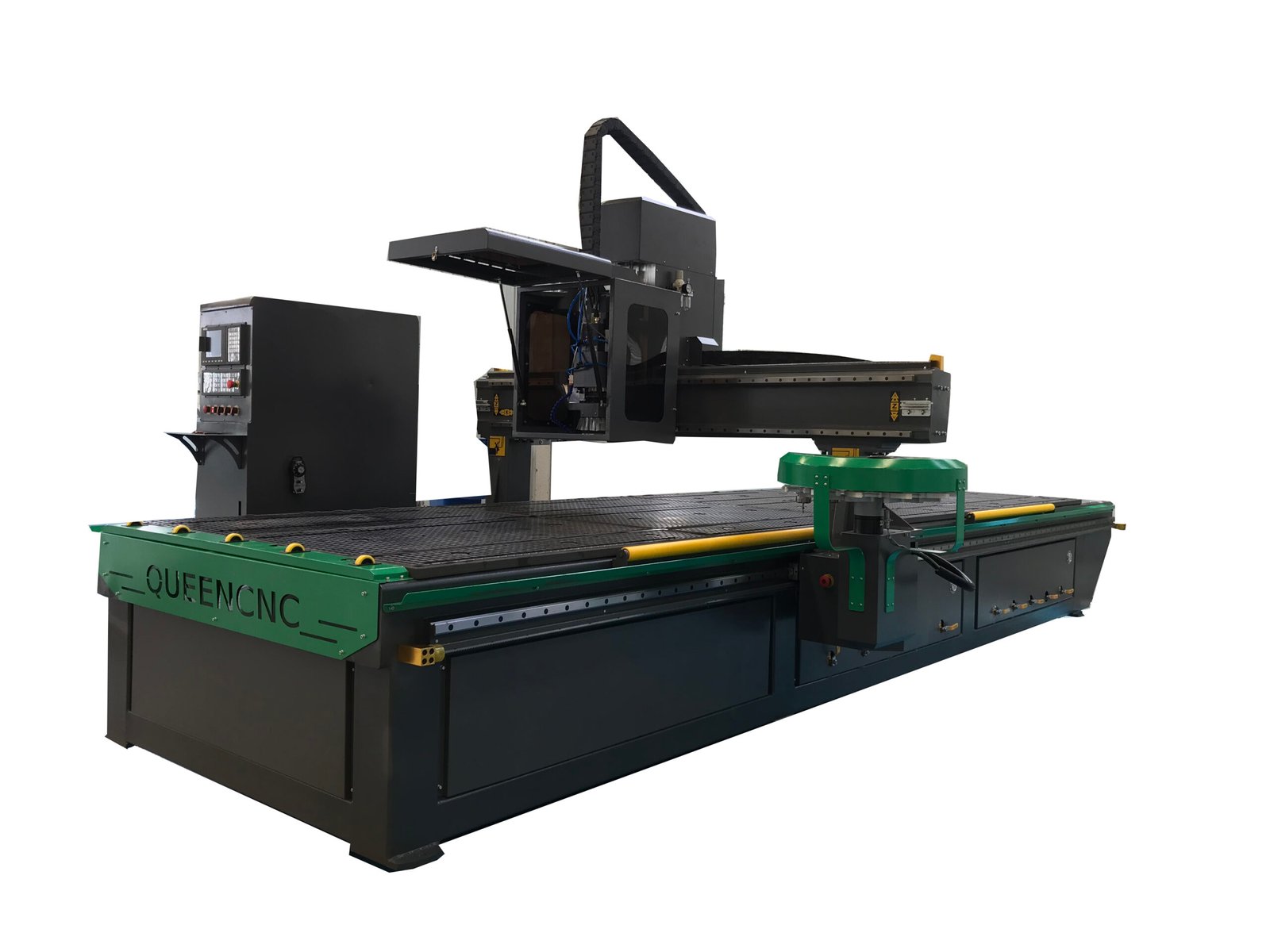

QN1550C Carousel ATC FOR WOOD AND ALUMINUM
Product Detail
| Model (option) | QN1550C |
| X，Y，Z axis working area | 1500*5000*250mm |
| Guide rail | Taiwan T-WIN 30 Square guide linear rail |
| X,Y structure | High-precision rack and pinion transmission |
| Z axis | ball screw TBI2510 |

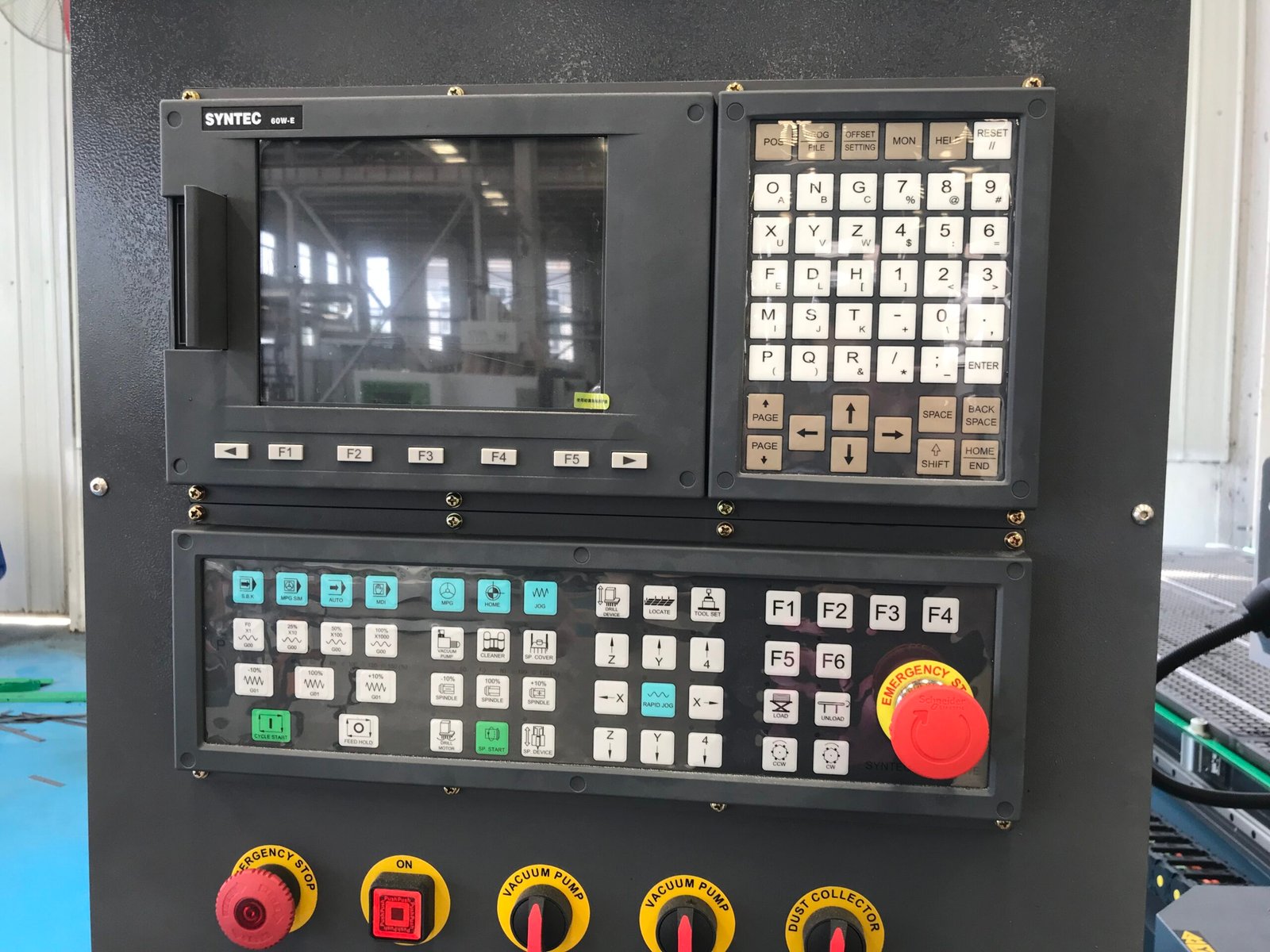

| Control system | Syntec60W-E control system |
| Whole structure | Cast steel |
| Max.working speed | 70m/min |
| Maxing cutting speed | 20m/min |
| Resolution | 0.01mm |
| Processing accuracy | <0.05mm |
| Wood holding | Vacuum absorption(by suction) |
| Competitive software | AutoCAD,Artcam,Photoshop,Type3,Artcut,Ucancam,powermill |
| Imagine format graphic | BMP,GIF,JPGE,PCX,TGA,TIFF,PTLCDR,DMG,DXF, |

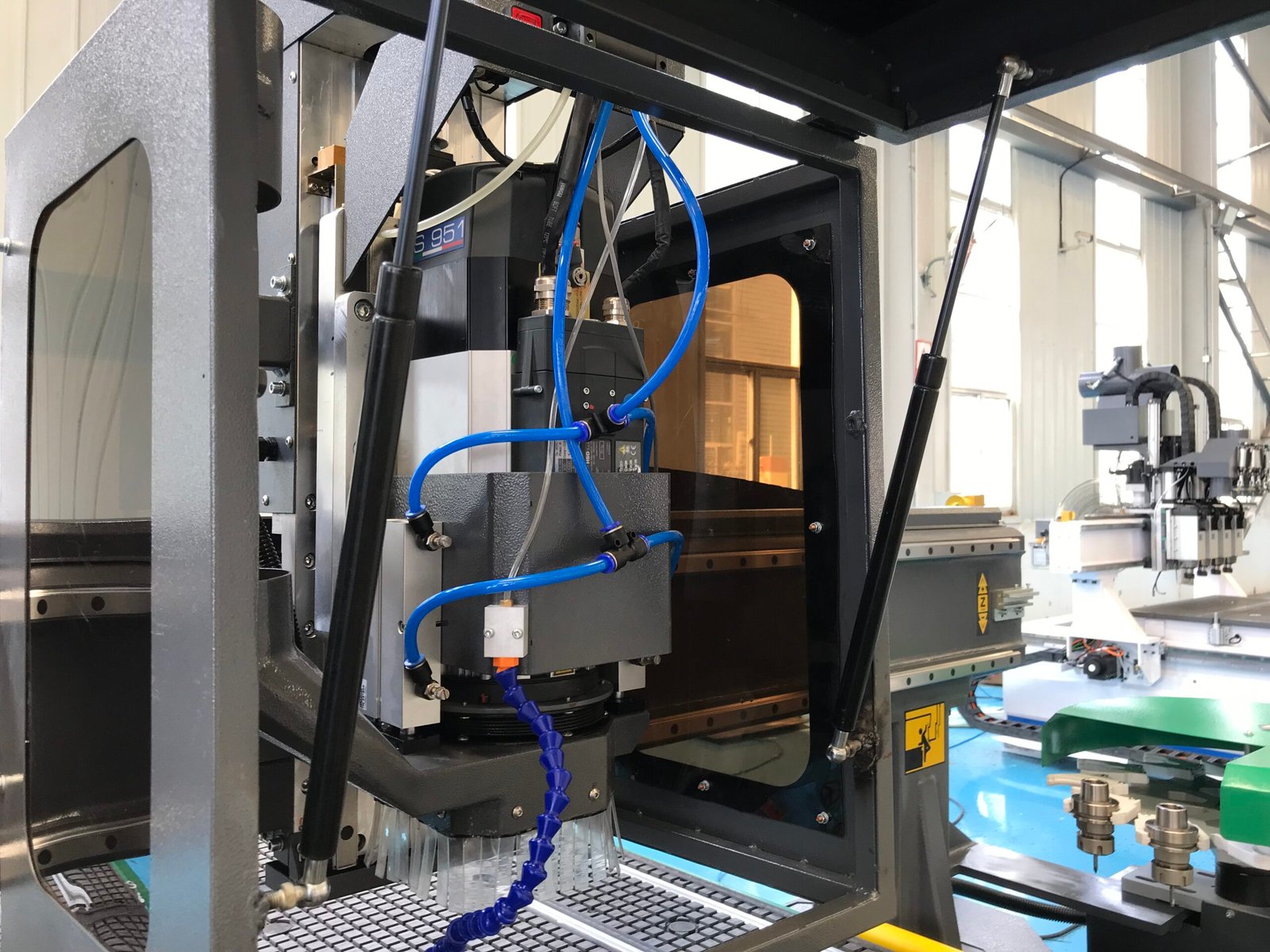

| Spindle power | 9KW HSD ATC air cooling spindle |
| Spindle rotating speed | 6000-24000rmp/min |

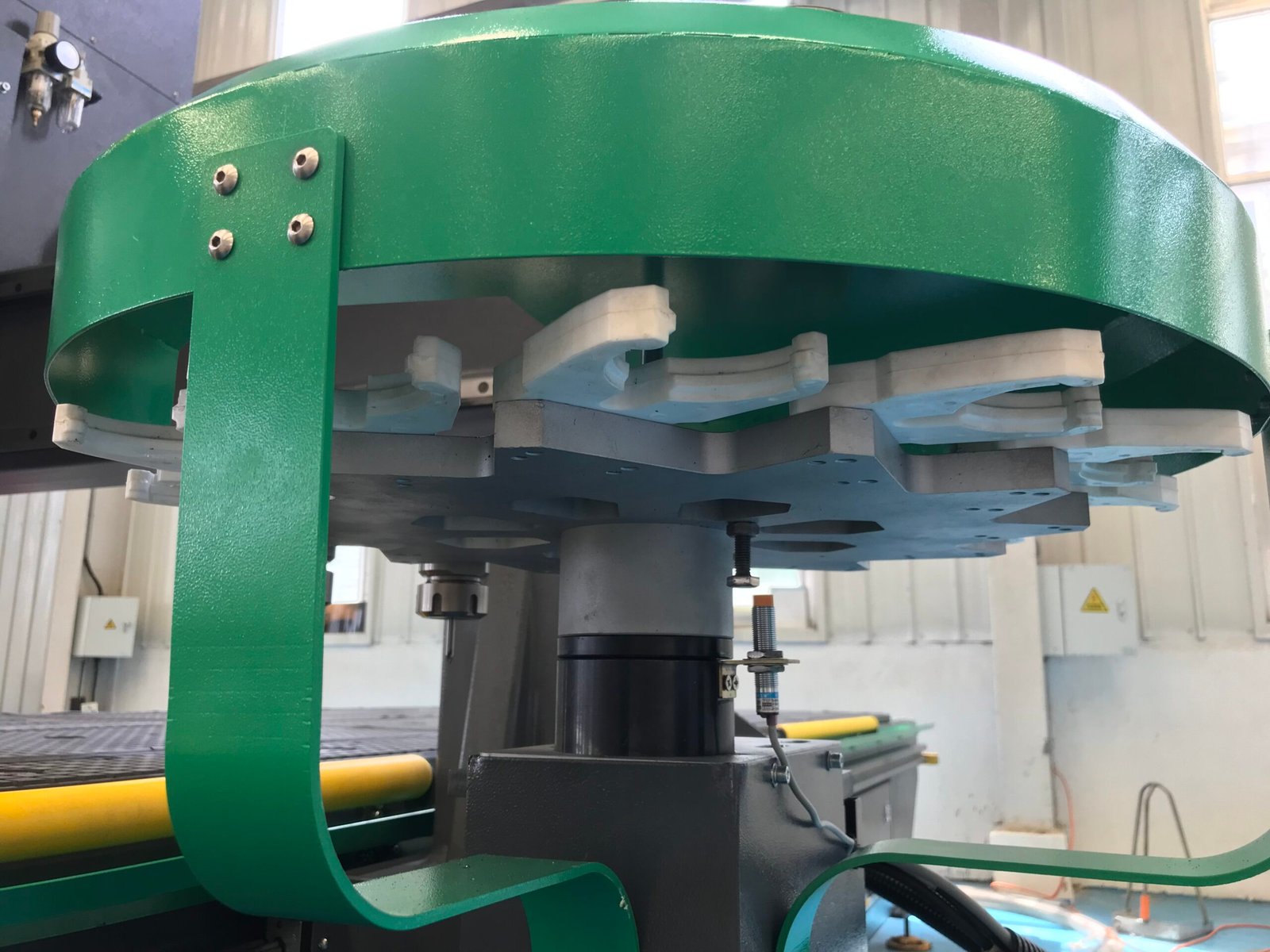

| Tool magazine | Carousle ATC system ,with 12 pieces of cutters |
| Diameter of cutter | φ3.175~φ20 |

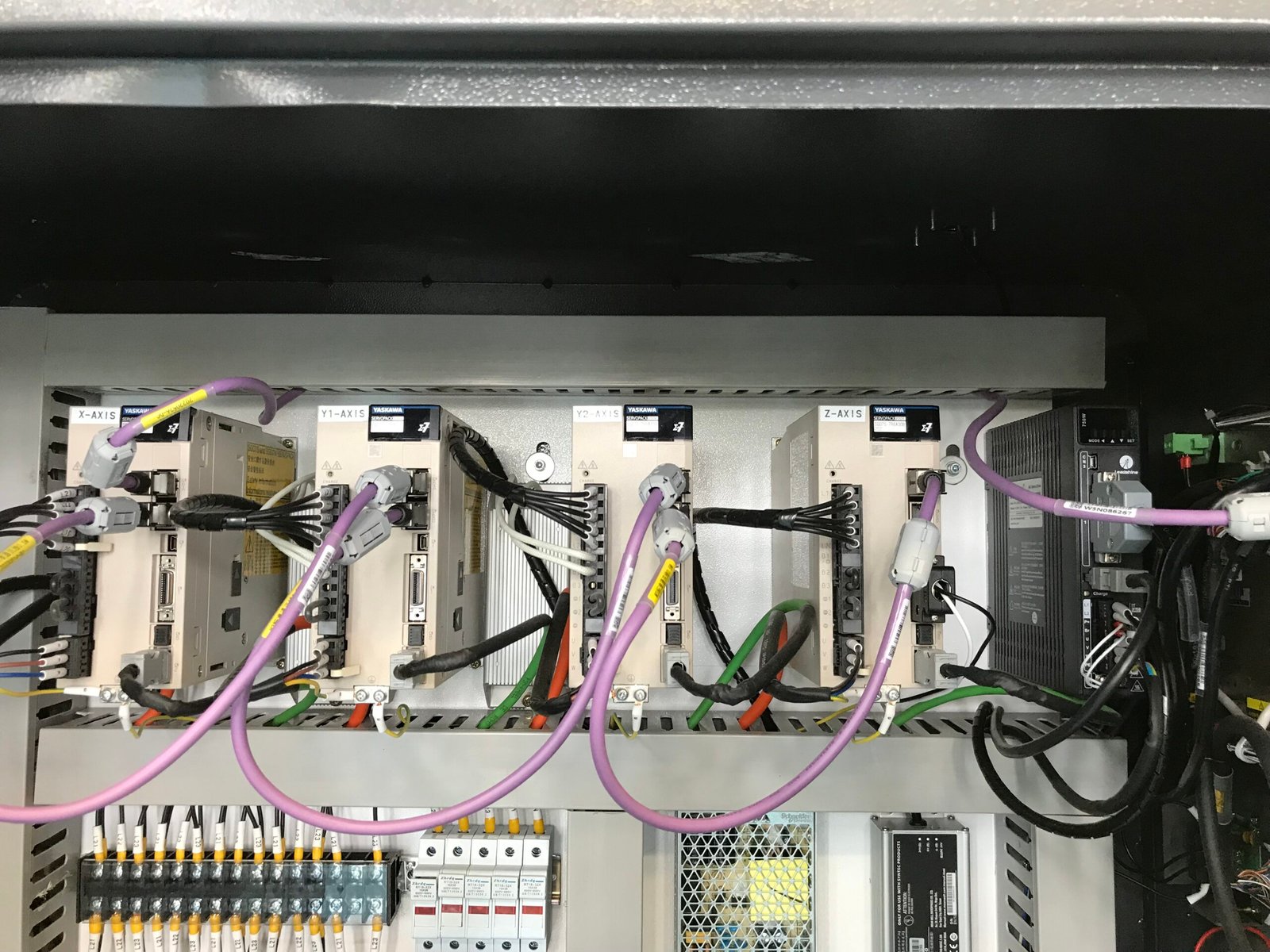

| Driving system | Yaskawa servo system |
| Operate language | G code,plt,mmg,uoo,bmp,F/S |
| Working voltage | AC380V/50Hz or 220V |
| Running environment | Temperature:0-45;Humidity:30%~70% |
| With Optional parts | Vacuum worktable,dust collector |
| Machine parts | 9kw HSD air cooled spindle Yaskawa servo motor and drive 850W Syntec60W-E control system Taiwan 30 squarer guide rail 11KW Delta inverter equipment 2PCS of 7.5KW air cooled vacuum pump and vacuum worktable Automatic oil lubricating system Automatic oil mist system automatic tool measurement 12 tool holder and collets Dust collector 7.5kw control box/wrench/brush |
