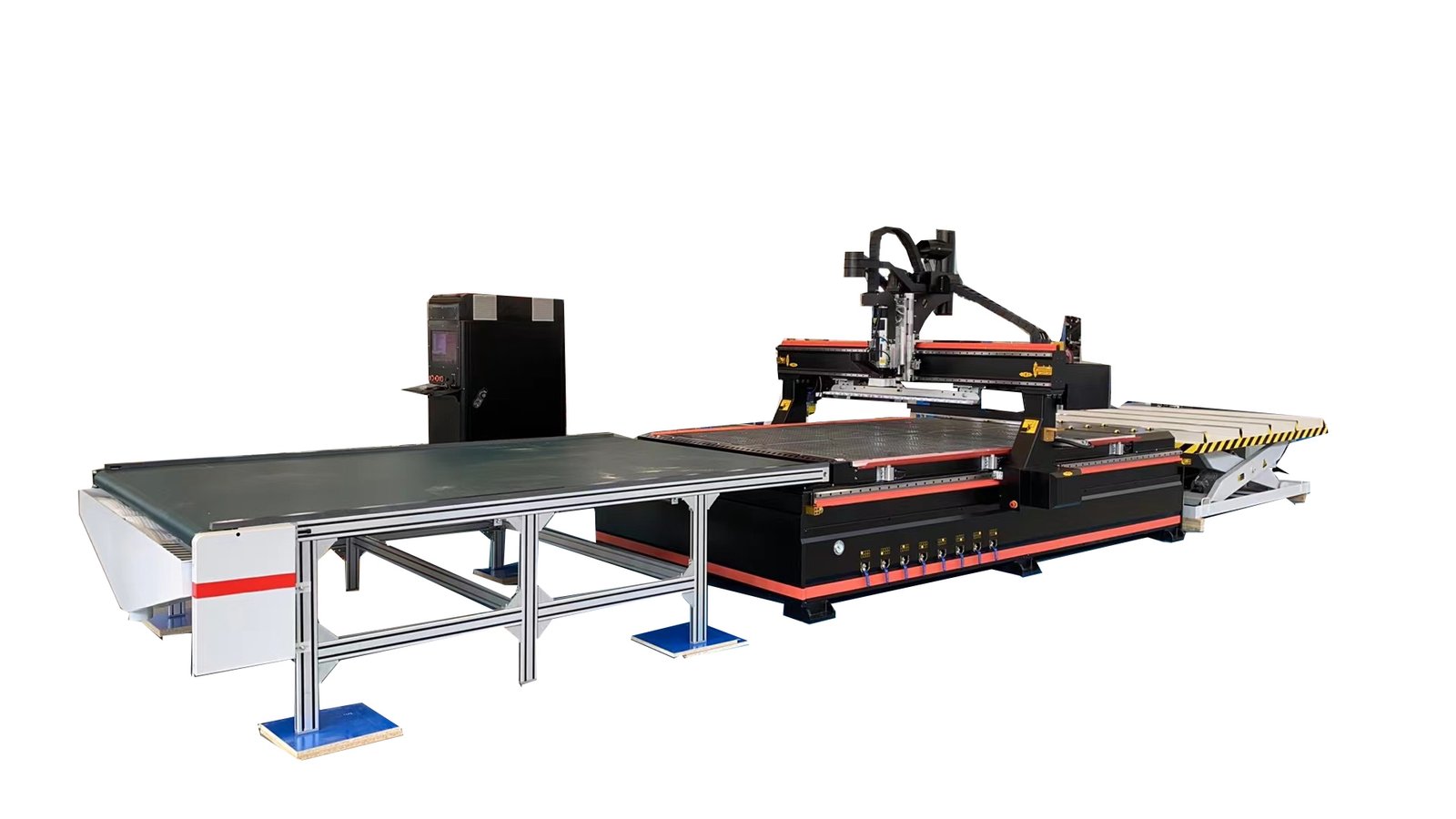

Nesting CNC Router 2000mm by 3000mm
Product Detail
| Model (option) | |
| X，Y，Z axis working area | 2000*3000*200mm |
| Guide rail | Square guide linear rail from taiwan |
| X,Y structure | High-precision rack and pinion transmission |
| Z axis | ball screw |
| Control system | LNC control |

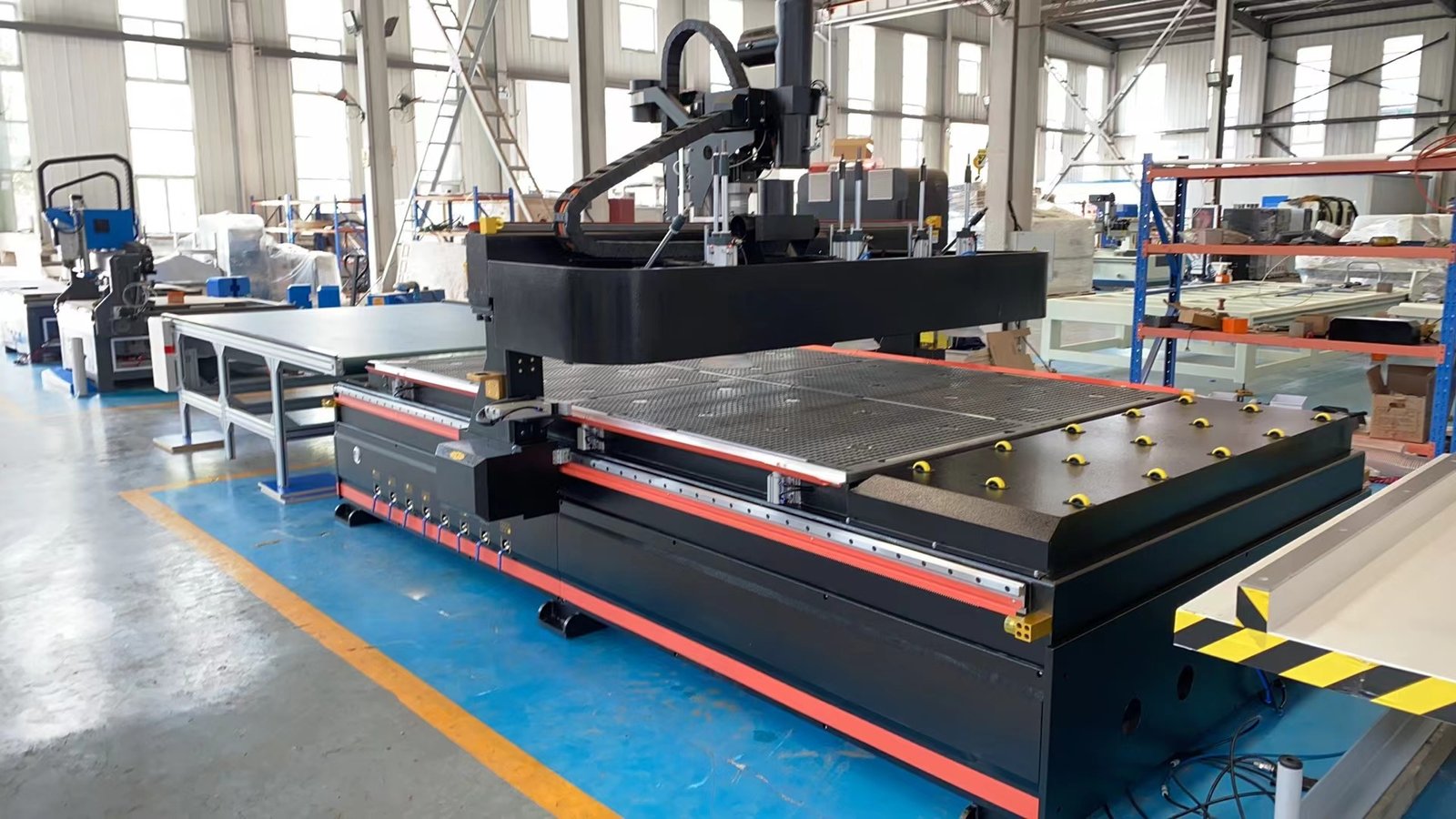

| Whole structure | Steel Welded |
| Max.Rapid speed | 60m/min |
| Resolution | 0.01mm |
| Processing accuracy | <0.05mm |

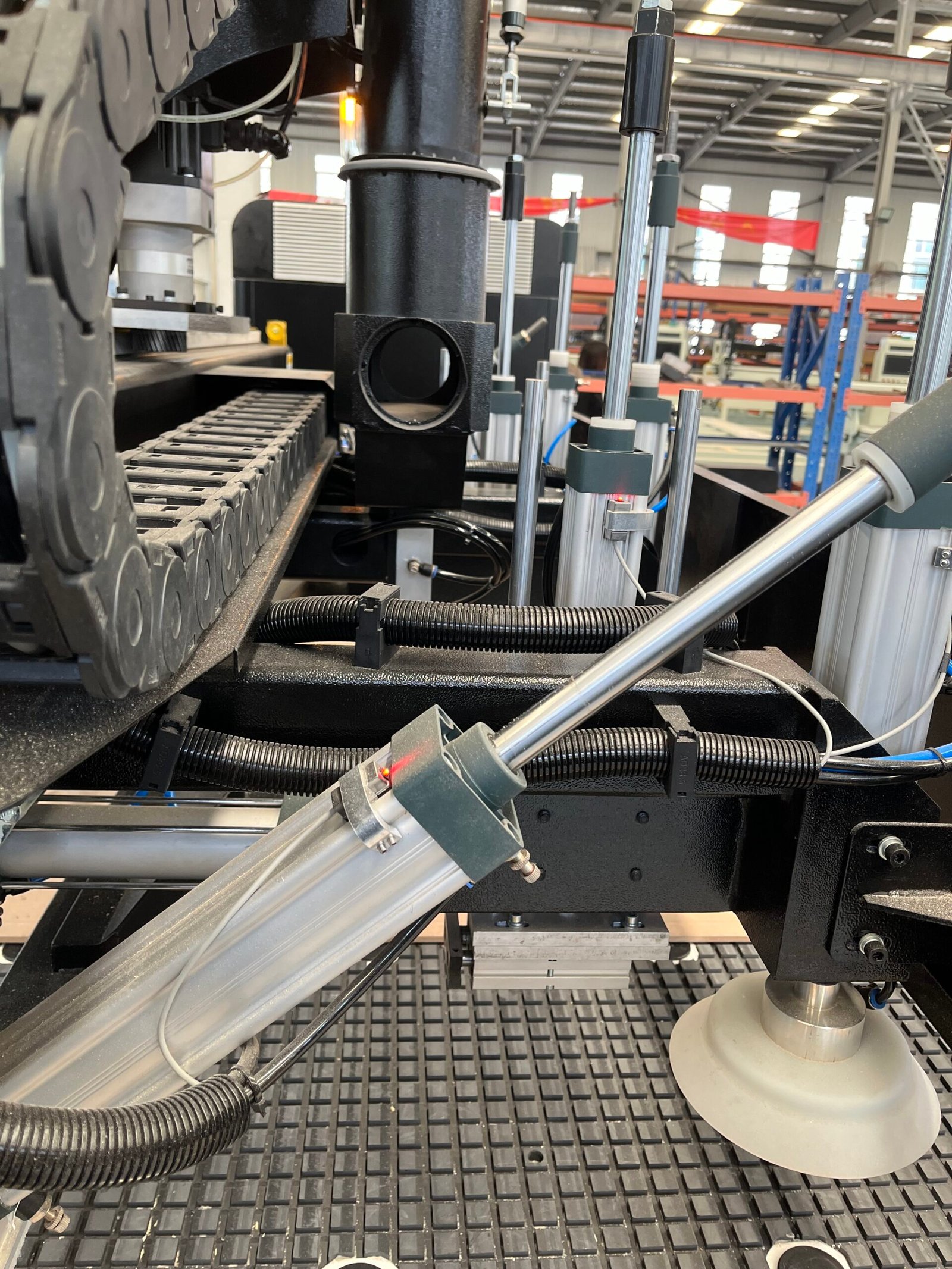

| Wood holding | Vacuum table |
| Competitive software | AutoCAD,Artcam,Photoshop,Type3,Artcut,Ucancam,powermill |
| Imagine format graphic | BMP,GIF,JPGE,PCX,TGA,TIFF,PTLCDR,DMG,DXF |
| Spindle power (you can choose) | 9kw HQD ATC spindle |
| Spindle rotating speed | 6000-24000rmp/min |

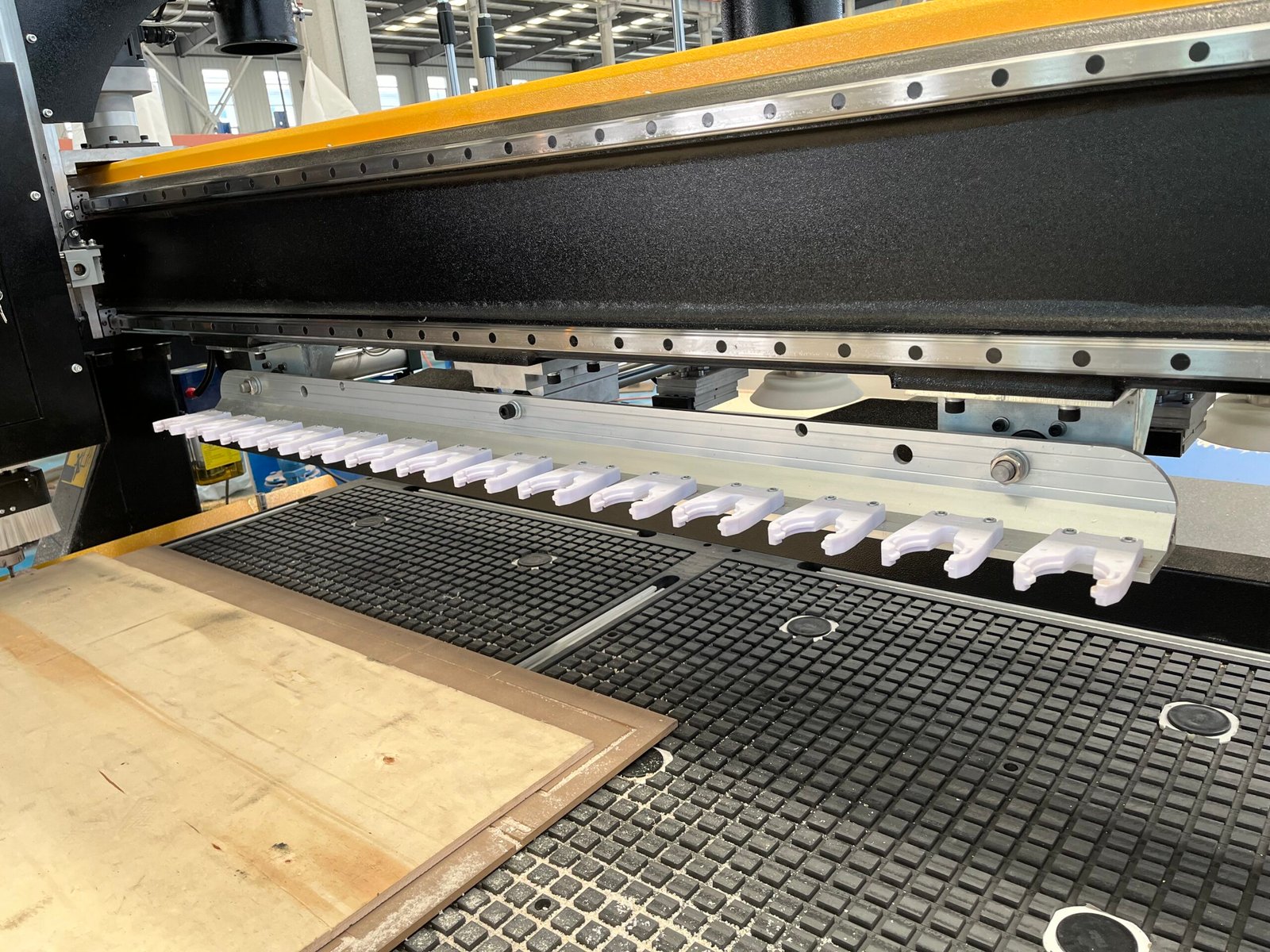

| Tool magazine | 12 pieces of cutters |
| Diameter of cutter | φ3.175~φ20 |
| Driving system | servo system |
| Operate language | G code,plt,mmg,uoo,bmp,F/S |
| Working voltage | AC380V/50Hz or 220V |
| Running environment | Temperature:0-45;Humidity:30%~70% |
| With Optional parts | Vacuum worktable |
